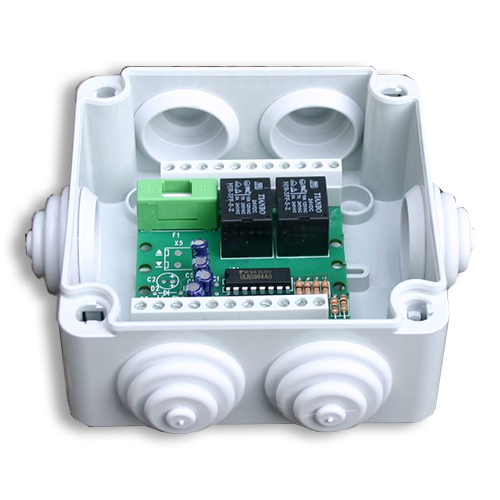

MCU PL 1gang 24/230

The MCU PL 1gang 24/230 is our standard control unit. It is the all-rounder among the conventional control units and ensures simple operation of your electrical Smart Home products via switches and push-buttons.

control unit 1gang

Technical data

  • Supply voltage: 20 to 35 V DC
  • Current consumption: 18 mA DC
  • Rated voltage: 230 V AC 50 Hz
  • Rated current: 3 A AC
  • Control voltage: 20 to 35 V DC
  • Connection type: screw terminals
  • Protection class (surface-mounted): IP55
Data sheet

Function description

The MCU PL 1gang 24/230 controls your Smart Home products in the simplest way. For example, a roller shutter is lowered as long as you keep the button pressed. When you release the button, the roller shutter stops. The same applies when raising the roller shutter. With the MCU PL 1gang 24/230 you can control simply and easily.



Related articles

Article Name Case Dimensions
200044 MCU PL 1gang 24/230 None L75 x B75 x H20 mm
200045 MCU PL 1gang 24/230 FM flush-mounted L106 x B106 x H57 mm
200046 MCU PL 1gang 24/230 SM surface-mounted L131 x B131 x H60 mm
