MCU TL 1gang 24/230 FM-R

The MCU TL 1gang 24/230 FM-R is for 230 V motors. With it, you can conveniently control your suspended units via the time logic. This means that if you keep the button pressed for longer than 2 seconds, your curtain will move to the end position. This is practical and at the same time increases the ease of operation.

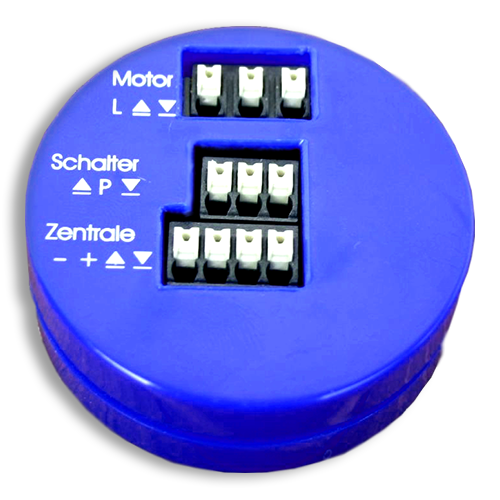

control unit time logic 24 V round

Technical data

Dimensions: Ø 50 mm
Supply voltage: 18 to 32 V DC
Current consumption: 15 mA DC
Rated voltage: 230 V AC 50Hz
Rated current: 3 A AC
Control voltage: 18 to 32 V DC
Connection type: direct plug-in spring terminals
Protection class: Depending on case

Data sheet

Function description

The MCU TL 1gang 24/230 FM-R is suitable for 230 V motors. Due to its space-saving design, it can be easily flush-mounted. It enables convenient operation thanks to the integrated time logic. This means that if the button is held down for 2 seconds, the blind automatically moves to the end position. Pressing in the opposite direction stops the blind.

Article	Name
200059	MCU TL 1gang 24/230 FM-R
